Ebdim Guitar Chord | Play, Hear and Practice Interactively

Want a structured chord roadmap instead of jumping between pages?
Go to the full guitar chords tutorial.

Eb dim position 1 guitar chord diagram

The Eb diminished chord is usually written Ebdim and uses the notes Eb, Gb and Bbb. Melodies over Ebdim can draw on the Eb whole-half scale, which contains every note of the chord.

The outer notes are a diminished fifth apart, the tritone, which splits the octave exactly in half. All 4 voicings are fretted without a barre, and none uses an open string. Bbb is a theoretical note, which is why the same sound is also written D#dim. In sound, Ebdim matches the vii chord of E major, which that key spells with other letters.

Moving in and out of it gets easier with smoother chord changes. Hear it twice in the fretboard player at the top: once strummed, once as an arpeggio, so you can pick out each note.

Eb diminished guitar chord is also written as Ebdim, Eb°, Ebm(b5) or Ebmb5.

Eb dim chord Notes:

Eb Gb Bbb

Tones of the Diminished chord:

Formula: 1 b3 b5

Eb Dim Guitar Chord Diagrams

Position 1 Movable

Eb dim position 1 guitar chord diagram

Finger Positions

  • Mute the low E string
  • Mute the A string
  • Place your index finger (1) on the fret 1 of the D string
  • Place your middle finger (2) on the fret 2 of the G string
  • Place your ring finger (3) on the fret 2 of the high E string
  • Place your pinky finger (4) on the fret 4 of the B string

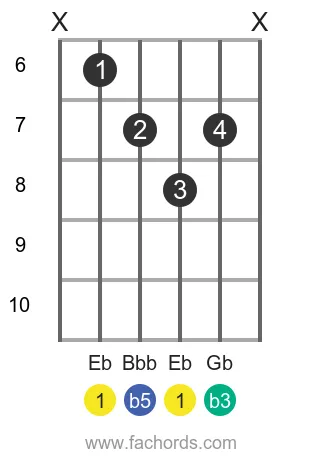

Position 2 Movable

Eb dim position 2 guitar chord diagram

Finger Positions

  • Mute the low E string
  • Mute the high E string
  • Place your index finger (1) on the fret 6 of the A string
  • Place your middle finger (2) on the fret 7 of the D string
  • Place your ring finger (3) on the fret 8 of the G string
  • Place your pinky finger (4) on the fret 7 of the B string

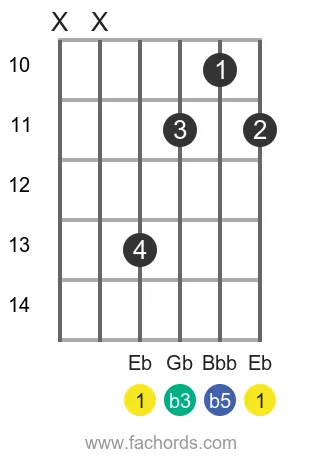

Position 3 Movable

Eb dim position 3 guitar chord diagram

Finger Positions

  • Mute the low E string
  • Mute the A string
  • Place your index finger (1) on the fret 10 of the B string
  • Place your middle finger (2) on the fret 11 of the high E string
  • Place your ring finger (3) on the fret 11 of the G string
  • Place your pinky finger (4) on the fret 13 of the D string

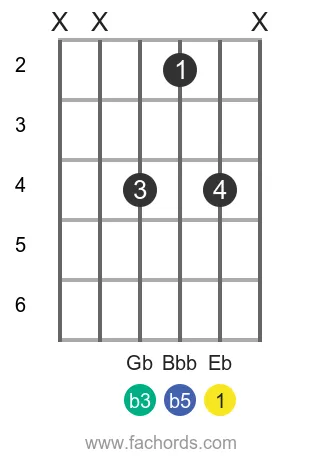

Position 4 Movable

Eb dim position 4 guitar chord diagram

Finger Positions

  • Mute the low E string
  • Mute the A string
  • Mute the high E string
  • Place your index finger (1) on the fret 2 of the G string
  • Place your ring finger (3) on the fret 4 of the D string
  • Place your pinky finger (4) on the fret 4 of the B string

download this tutorial in pdf Find more shapes in our all guitar chords online library. If you prefer a printable pdf, download the Free Guitar Chords Chart Pdf

Play This Chord With Other Roots

C dim | D dim | E dim | F dim | G dim | A dim | B dim | C#dim | D#dim | F#dim | G#dim | A#dim | Abdim | Bbdim | Dbdim | Ebdim | Gbdim

Giancarlo Facoetti, founder of FaChords Guitar

Created by

Giancarlo Facoetti

Giancarlo is a musician (teaching guitar since 2000), software engineer, AI consultant and published researcher

FAQ

Which notes make up Ebdim?

Ebdim consists of Eb, Gb and Bbb. These are the root, the minor third and the flat fifth. Bbb sounds like A, six semitones from Eb.

Why is the fifth of Ebdim called Bbb?

The fifth of Eb lies on the letter B, and the flat fifth lowers Bb by a further semitone. That produces the double flat Bbb, the same pitch as A natural.

Is Ebdim the same as D#dim?

Yes. Ebdim and D#dim describe the same pitches. D#dim is written D#, F# and A, and the sound is identical to Ebdim.

In which key is Ebdim the vii chord?

Ebdim shares its pitches with the vii chord of E major, which writes it D#dim. It is the diminished triad on the seventh degree of that key.

How many Ebdim voicings can be played on guitar?

There are 4 voicings, none using open strings or a barre. The lowest sits at fret 1 and the highest at fret 13.
