Eb Chords on Guitar: All Types

Eb chords are known for their expressive and emotive tone, frequently used in genres like jazz and blues. By mastering Eb chords, you can bring a deeper emotional resonance to your guitar playing, making your music more compelling.

You can also see chords from other roots at these links below:

C D E F G A B C# D# F# G# A# Ab Bb Db Eb Gb

Eb Major Chords

Eb maj

guitar chord diagram for the Eb maj chord

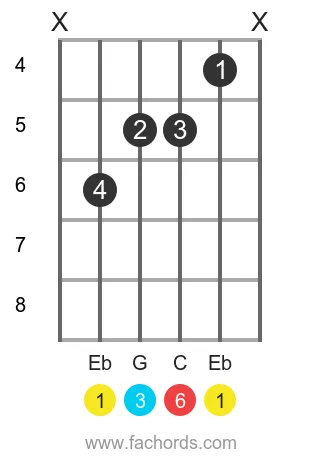

Eb 6

guitar chord diagram for the Eb 6 chord

Eb add9

guitar chord diagram for the Eb add9 chord

Eb maj7

guitar chord diagram for the Eb maj7 chord

Eb 6/9

guitar chord diagram for the Eb 6/9 chord

Eb 6(#11)

guitar chord diagram for the Eb 6(#11) chord

Eb maj9

guitar chord diagram for the Eb maj9 chord

Eb maj13

guitar chord diagram for the Eb maj13 chord

Eb Augmented Chords

Eb aug

guitar chord diagram for the Eb aug chord

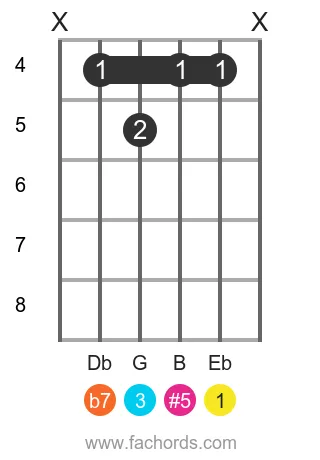

Eb 7(#5)

guitar chord diagram for the Eb 7(#5) chord

Eb +(#11)

guitar chord diagram for the Eb +(#11) chord

Eb maj7(#5)

guitar chord diagram for the Eb maj7(#5) chord

Eb 9(#5)

guitar chord diagram for the Eb 9(#5) chord

Eb 13(#5)

guitar chord diagram for the Eb 13(#5) chord

Eb Minor Chords

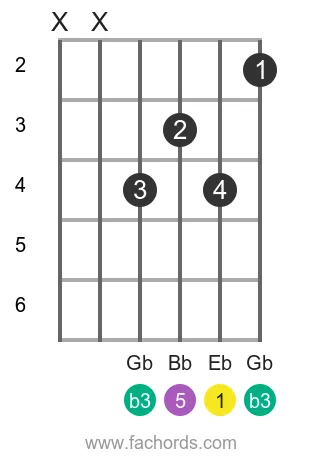

Eb m

guitar chord diagram for the Eb m chord

Eb m(maj7)

guitar chord diagram for the Eb m(maj7) chord

Eb m6

guitar chord diagram for the Eb m6 chord

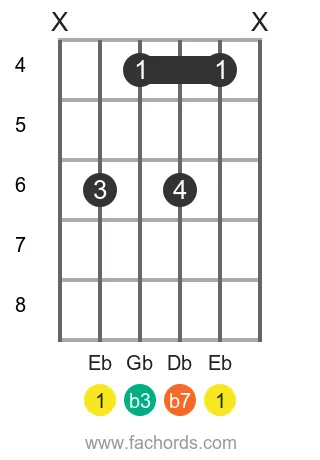

Eb m7

guitar chord diagram for the Eb m7 chord

Eb m(maj9)

guitar chord diagram for the Eb m(maj9) chord

Eb m6/9

guitar chord diagram for the Eb m6/9 chord

Eb m9

guitar chord diagram for the Eb m9 chord

Eb m11

guitar chord diagram for the Eb m11 chord

Eb m13

guitar chord diagram for the Eb m13 chord

Eb Dominant Chords

Eb 7

guitar chord diagram for the Eb 7 chord

Eb 7b5

guitar chord diagram for the Eb 7b5 chord

Eb 7(b13)

guitar chord diagram for the Eb 7(b13) chord

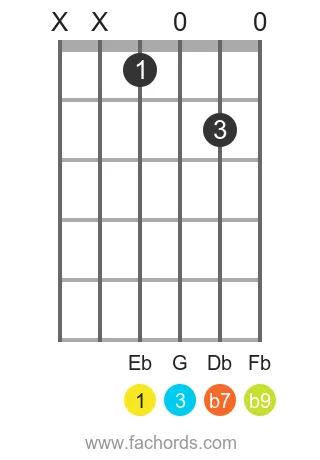

Eb 7(b9)

guitar chord diagram for the Eb 7(b9) chord

Eb 7(#11)

guitar chord diagram for the Eb 7(#11) chord

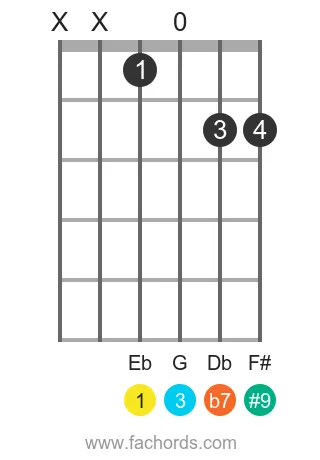

Eb 7(#9)

guitar chord diagram for the Eb 7(#9) chord

Eb 9

guitar chord diagram for the Eb 9 chord

Eb 9b5

guitar chord diagram for the Eb 9b5 chord

Eb 11

guitar chord diagram for the Eb 11 chord

Eb 9(#11)

guitar chord diagram for the Eb 9(#11) chord

Eb 13

guitar chord diagram for the Eb 13 chord

Eb 13(b9)

guitar chord diagram for the Eb 13(b9) chord

Eb 13(#11)

guitar chord diagram for the Eb 13(#11) chord

Eb 13(#9)

guitar chord diagram for the Eb 13(#9) chord

Eb Diminished Chords

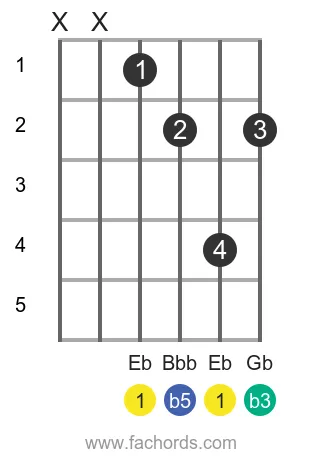

Eb dim

guitar chord diagram for the Eb dim chord

Eb dim7

guitar chord diagram for the Eb dim7 chord

Eb m7b5

guitar chord diagram for the Eb m7b5 chord

Eb Suspended/Power Chords

Eb 5

guitar chord diagram for the Eb 5 chord

Eb sus2

guitar chord diagram for the Eb sus2 chord

Eb sus4

guitar chord diagram for the Eb sus4 chord

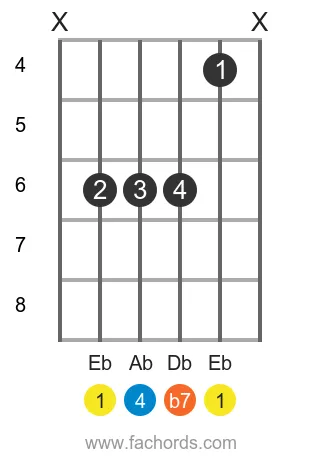

Eb 7sus4

guitar chord diagram for the Eb 7sus4 chord
