Abmaj Guitar Chord | Play, Hear, and Practice Interactively

The Ab major chord contains Ab, C and Eb, a root, a major third and a perfect fifth. The page holds 19 voicings, 12 of them barre shapes, and none uses an open string.

Ab is the I chord of Ab major, the IV chord of Eb major and the V chord of Db major. Reading the notes as how a major triad is built helps when a chart writes it as G#. The Ab major scale contains all three notes.

In the fretboard player at the top, each shape comes with its notes labelled, which shows where the Ab, the C and the Eb fall.

Ab major guitar chord is also written as Ab, Abmaj, AbM or AbΔ.

Notes of the Ab maj chord:

Ab C Eb

Chord Formula:

Formula: 1 3 5

Ab Maj Chord Interactive Fretboard

Want a structured chord roadmap instead of jumping between pages?
Go to the full guitar chords tutorial.

Ab Maj Guitar Chord Diagrams

Position 1 Barre Movable

Finger Positions

Mute the low E string
Mute the A string
Place your index finger (1) on the fret 1 of the D, G and B strings at the same time
Place your pinky finger (4) on the fret 4 of the high E string

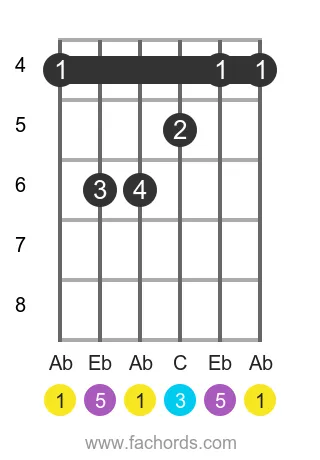

Position 2 Barre Movable

Finger Positions

Place your index finger (1) on the fret 4 of the low E, B and high E strings at the same time
Place your middle finger (2) on the fret 5 of the G string
Place your ring finger (3) on the fret 6 of the A string
Place your pinky finger (4) on the fret 6 of the D string

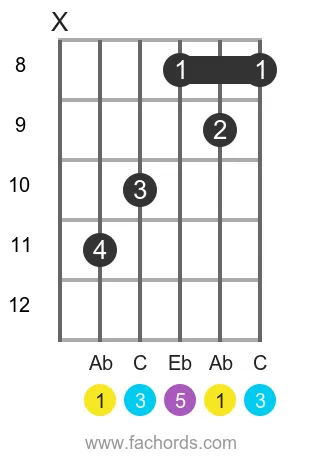

Position 3 Barre Movable

Finger Positions

Mute the low E string
Place your index finger (1) on the fret 8 of the G and high E strings at the same time
Place your middle finger (2) on the fret 9 of the B string
Place your ring finger (3) on the fret 10 of the D string
Place your pinky finger (4) on the fret 11 of the A string

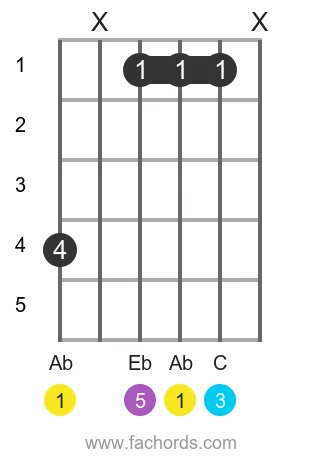

Position 4 Barre Movable

Finger Positions

Mute the A string
Mute the high E string
Place your index finger (1) on the fret 1 of the D, G and B strings at the same time
Place your pinky finger (4) on the fret 4 of the low E string

Position 5 Barre Movable

Finger Positions

Mute the low E string
Mute the high E string
Place your index finger (1) on the fret 1 of the D, G and B strings at the same time
Place your ring finger (3) on the fret 3 of the A string

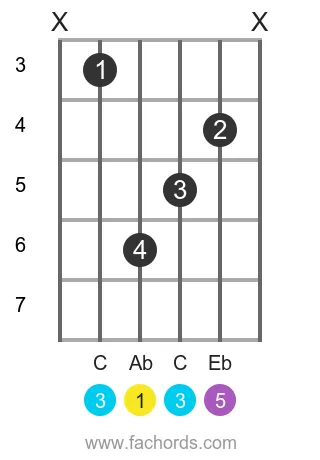

Position 6 Movable

Finger Positions

Mute the low E string
Mute the high E string
Place your index finger (1) on the fret 3 of the A string
Place your middle finger (2) on the fret 4 of the B string
Place your ring finger (3) on the fret 5 of the G string
Place your pinky finger (4) on the fret 6 of the D string

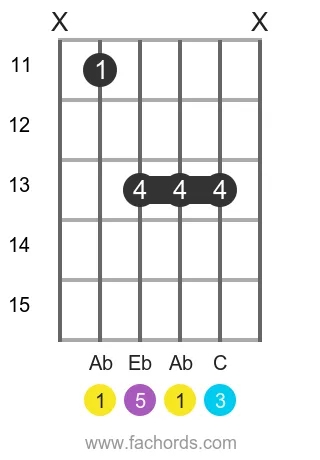

Position 7 Barre Movable

Finger Positions

Mute the low E string
Mute the high E string
Place your index finger (1) on the fret 11 of the A string
Place your pinky finger (4) on the fret 13 of the D, G and B strings at the same time

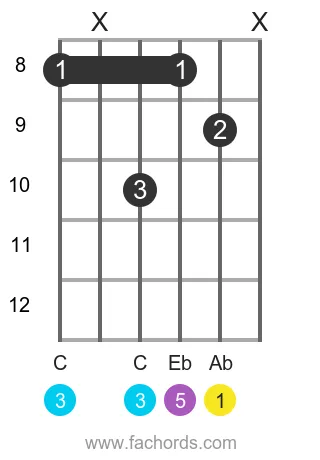

Position 8 Barre Movable

Finger Positions

Mute the A string
Mute the high E string
Place your index finger (1) on the fret 8 of the low E and G strings at the same time
Place your middle finger (2) on the fret 9 of the B string
Place your ring finger (3) on the fret 10 of the D string

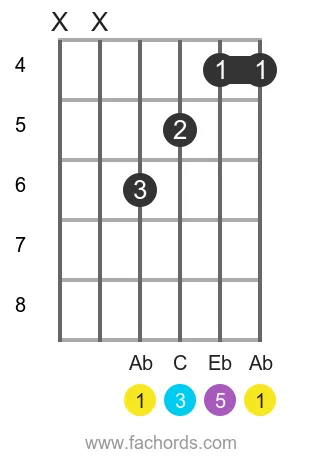

Position 9 Barre Movable

Finger Positions

Mute the low E string
Mute the A string
Place your index finger (1) on the fret 4 of the B and high E strings at the same time
Place your middle finger (2) on the fret 5 of the G string
Place your ring finger (3) on the fret 6 of the D string

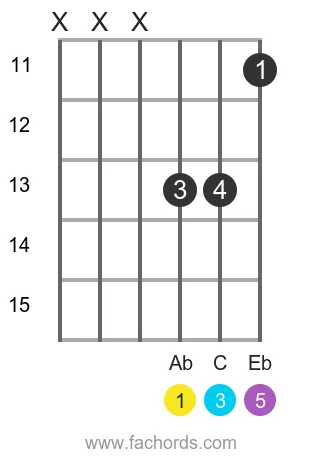

Position 10 Movable

Finger Positions

Mute the low E string
Mute the A string
Mute the D string
Place your index finger (1) on the fret 11 of the high E string
Place your ring finger (3) on the fret 13 of the G string
Place your pinky finger (4) on the fret 13 of the B string

Position 11 Barre Movable

Finger Positions

Mute the low E string
Mute the A string
Mute the high E string
Place your index finger (1) on the fret 1 of the D, G and B strings at the same time

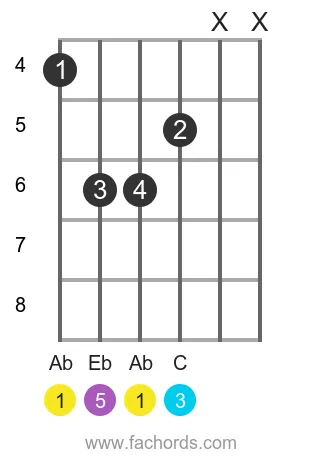

Position 12 Movable

Finger Positions

Mute the B string
Mute the high E string
Place your index finger (1) on the fret 4 of the low E string
Place your middle finger (2) on the fret 5 of the G string
Place your ring finger (3) on the fret 6 of the A string
Place your pinky finger (4) on the fret 6 of the D string

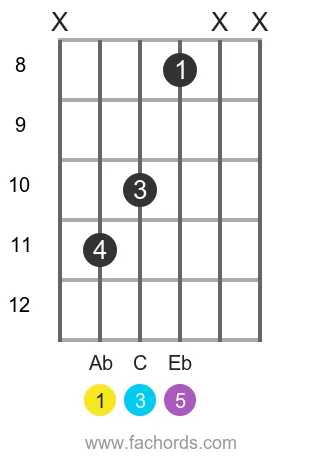

Position 13 Movable

Finger Positions

Mute the low E string
Mute the B string
Mute the high E string
Place your index finger (1) on the fret 8 of the G string
Place your ring finger (3) on the fret 10 of the D string
Place your pinky finger (4) on the fret 11 of the A string

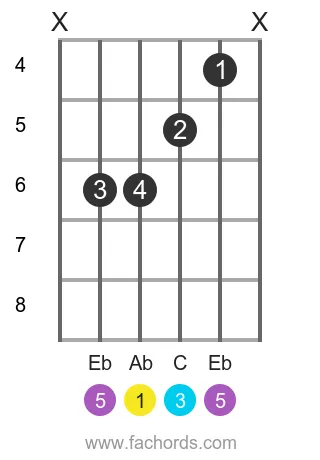

Position 14 Movable

Finger Positions

Mute the low E string
Mute the high E string
Place your index finger (1) on the fret 4 of the B string
Place your middle finger (2) on the fret 5 of the G string
Place your ring finger (3) on the fret 6 of the A string
Place your pinky finger (4) on the fret 6 of the D string

Position 15 Barre Movable

Finger Positions

Mute the A string
Mute the D string
Place your index finger (1) on the fret 4 of the low E, B and high E strings at the same time
Place your middle finger (2) on the fret 5 of the G string

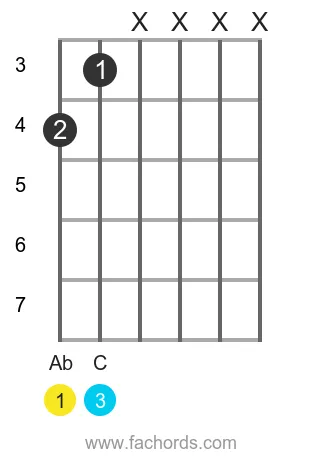

Position 16 Movable

Finger Positions

Mute the D string
Mute the G string
Mute the B string
Mute the high E string
Place your index finger (1) on the fret 3 of the A string
Place your middle finger (2) on the fret 4 of the low E string

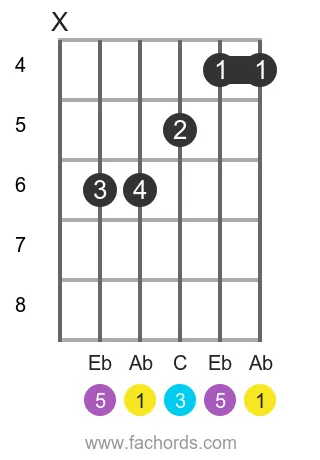

Position 17 Barre Movable

Finger Positions

Mute the low E string
Place your index finger (1) on the fret 4 of the B and high E strings at the same time
Place your middle finger (2) on the fret 5 of the G string
Place your ring finger (3) on the fret 6 of the A string
Place your pinky finger (4) on the fret 6 of the D string

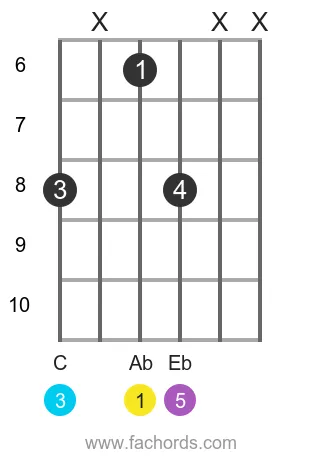

Position 18 Movable

Finger Positions

Mute the A string
Mute the B string
Mute the high E string
Place your index finger (1) on the fret 6 of the D string
Place your ring finger (3) on the fret 8 of the low E string
Place your pinky finger (4) on the fret 8 of the G string

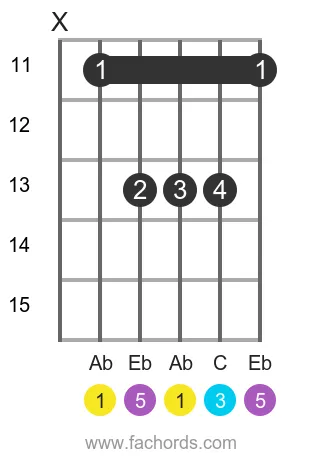

Position 19 Barre Movable

Finger Positions

Mute the low E string
Place your index finger (1) on the fret 11 of the A and high E strings at the same time
Place your middle finger (2) on the fret 13 of the D string
Place your ring finger (3) on the fret 13 of the G string
Place your pinky finger (4) on the fret 13 of the B string

Find more shapes in our all guitar chords online library. If you prefer a printable pdf, download the Free Guitar Chords Chart Pdf

Play This Chord With Other Roots

Want to Learn Everything About Chords?

Check Chords Domination out: a unique ebook that shows you finger positions, note names and intervals in the chords (plus a tones fretboard maps)

You'll learn how to play 44 chords types across all the fretboard, with many voicings and fingerings

In the ebook you can also find maps show you the tones in a chord all along the fretboard. They are incredibly helpful because allow you to:

Create new voicings on the fly, across all the neck
Improvise targeting the right notes
Unlock the fretboard and expand the CAGED system.

In the new ebook, Chords Domination, you'll find the fretboard tones maps for 44 different qualities of chords. Check it out:

Download Free Excerpt Learn More Here

Created by

Giancarlo Facoetti

Giancarlo is a musician (teaching guitar since 2000), software engineer, AI consultant and published researcher

FAQ

What notes are in Ab major?

Ab major is made of Ab, C and Eb. C is a major third up from Ab, four semitones, and Eb is a perfect fifth, seven semitones up.

Is Ab major the same as G# major?

They sound the same. Ab major is spelled Ab, C, Eb, while G# major is spelled G#, B#, D#, so the flat spelling avoids the B#.

How many voicings of Ab major are there?

Ab major has 19 voicings, 12 of them using a barre and none using open strings. The highest one reaches the 13th fret.

Which scale suits Ab major?

The Ab major scale: Ab, Bb, C, Db, Eb, F, G. All three chord tones sit in it, so it works for melodies over the chord.

Where does Ab major appear in a key?

Ab major is the I chord of Ab major and the IV chord of Eb major. Both scales include Ab, C and Eb.
