How to Play a Db7(#11) Chord on Guitar – Easy Db Dominant Seventh Sharp Eleventh Added Guitar Chord

Db 7(#11) position 1 guitar chord diagram

The Db7(#11) chord is composed of the Root, Major Third, Perfect Fifth, Minor Seventh, and Sharp Eleventh

Name variations for the Db7(#11) chord:

  • Db Dominant Seventh Sharp Eleventh Added
  • Db Dom+11
  • Db 7#11
  • Db 7+11
  • Db 7aug11
  • Db7(#11)

The notes of this chord are Db, F, Ab, Cb, and G

Db 7(#11) chord Notes:

DbFAbCbG

Chord structure of the Dominant Seventh Sharp Eleventh Added chord:

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8
b9
9
#9
11
#11
13

How To Play The Db7(#11) chord on guitar

Chord boxes are sorted from the easiest to the hardest. Learn how to read chord diagrams.

If you have difficulties with bar chord shapes, check the Bar Chords Tips tutorial.

Find more shapes on my all guitar chords online library.

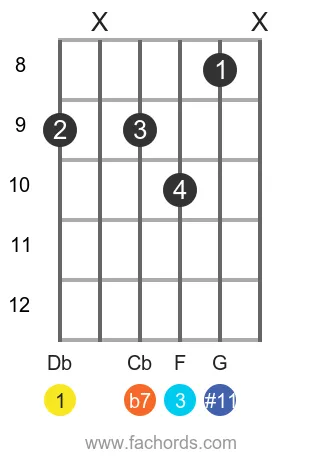

Position 1
Movable

Db 7(#11) position 1 guitar chord diagram

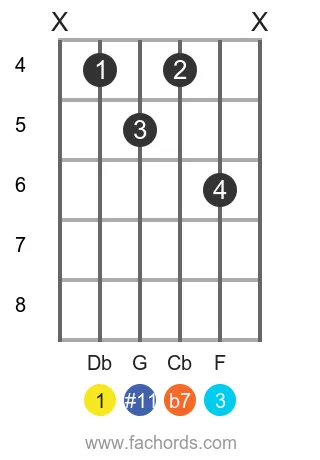

Position 2
Movable

Db 7(#11) position 2 guitar chord diagram

download this tutorial in pdfWant a printable pdf?
Download the Free Guitar Chords Chart Pdf

Play This Chord With Other Roots

C 7(#11) | D 7(#11) | E 7(#11) | F 7(#11) | G 7(#11) | A 7(#11) | B 7(#11) | C#7(#11) | D#7(#11) | F#7(#11) | G#7(#11) | A#7(#11)

Chord tones in the Db 7(#11) chord

This fretboard map shows you the tones in the chord all along the neck. You can play this chord by choosing some of the chord tones.

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3
#11
5
b7
1
3
#11
b7
1
3
#11
5
b7
3
#11
5
b7
1
3
#11
5
b7
1
3
#11
5
b7
1
3
#11
5
b7
1
3
#11
5
b7
1
3
#11
